CNC Multi-Axis Machining of Steel Tube for Hydraulic Industry

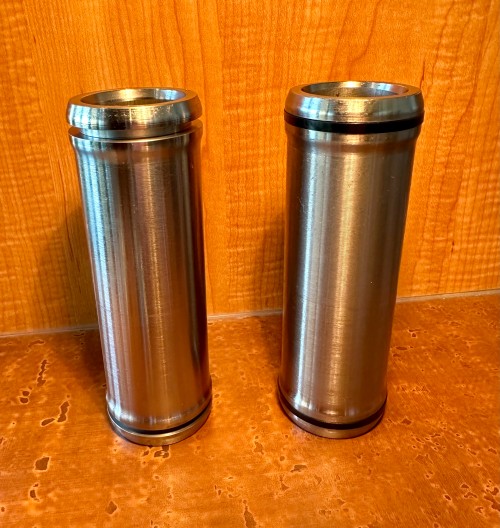

Contracted by a hydraulic industry leader, The Hinz Company constructed a multi-axis turned steel tube used for commerical hydraulic applications. Produced from steel material, this part was manufactured using advanced CNC multi-axis turning equipment, capable of holding (±) .001 of an inch precision tolerance.
The steel tube after run complete in our CNC multi-axis turning department is carefully transported to our debur and assembly department. There it is carefully assembled using customer supplied seals. Final steps include performing a series of dimensional checks, ensure that the parts meet exact customer and FAA specifications as well as stacking in crates to ship to customer.
Providing only the most reliable, cost effective machining services, The Hinz Company was able to successfully manufacture this multi-axis turned steel tube assembly for hydraulic industry, meeting our client's high expectations for quality.
| Product Description | Steel tube assembly |
| Capabilities Applied/Processes | CNC Multi Axis turning |
| Equipment Used to Manufacture Part | 8-Axis including a Y-Axis CNC Multi Axis Turning Lathe |
| Size | 5" |
| Cycle Time |
~3 minutes~ |
| Material | Steel |
| Features |
|
| In process testing performed | Dimensional checks |
| Weight | ~1.5 pounds~ |
| Industry for Use | Hydraulic Industry |
| Delivery Location | Wisconsin |
| Standards Met | Customer supplied print, 2D CAD Drawing |
| Product Name | Steel tube assembly |
